選金設備出口怎么發集裝箱？

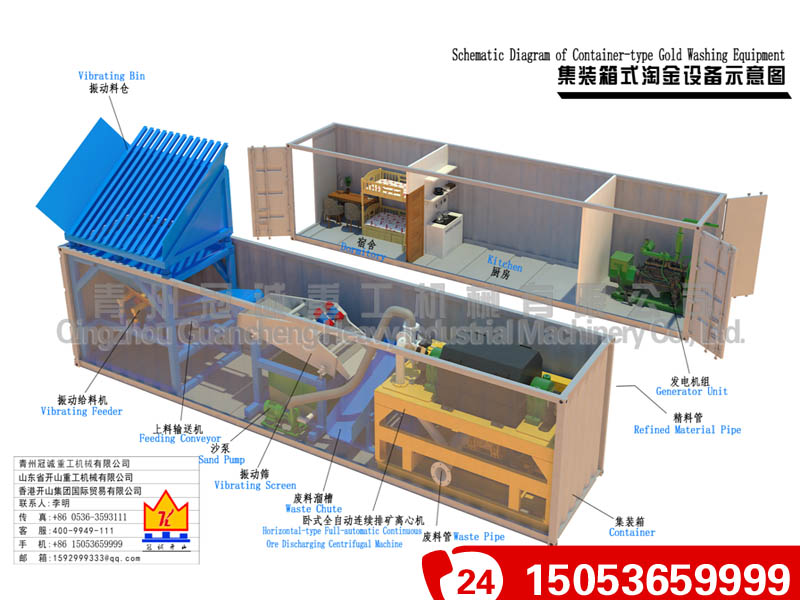

選金設備出口怎么發集裝箱呢？下面冠誠重工技術小編給您展示下我們公司發往南非的集裝箱圖片。希望選金設備出口南非裝集裝箱問題對您有所幫助。
選金設備技術參數及報價：Technical Parameter and Offer
|
名稱 Name |
規格/mm Specification/mm |
功率 Power |
數量 Quantity |
備注 Remark |
|
振動料倉 Vibrating bin |
2000*3000 |
5.8 |
1套 1 set |
含振動給料機 Including vibrating feeder |
|
上料輸送機 Feeding conveyor |
皮帶寬度600 600 in width for leather belt |
2.2 |
1套 1 set |
電動滾筒 Motorized pulley |
|
振動篩 Vibrating screen |
1500*3500 |
3 |
1套 1 set |
含廢料溜槽、支架 Including waste chute and bracket |
|
離心機 Centrifugal machine |
臥式全自動連續排礦 Horizontal type full-automatic continuous ore discharging |
21.5 |
1套 1 set |
PLC電腦控制 Controlled by PLC computer |
|
貨柜 Counter |
40尺開頂 40 chi open-top |
- |
2個 2 Pcs. |
|
|
離心泵 Centrifugal pump |
|
11 |
1臺 1 unit |
|
|
水泵 Water pump |
|
5.5 |
1臺 1 unit |
|
|
配電箱 Distribution box |
|
- |
1套 1 set |
含至設備電機線 Including wires to equipment motors |
|
發電機組 Generator unit |
100KW |
- |
1臺 1 unit |
|
|
總功率 Total power |
49KW(不含照明及其它設備) 49KW (excluding illumination device and other equipment) |
|||
